feather selecting & separated shuttlecock production machine

FOB Reference Price:Get Latest Price
US $16,000-25,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
YMQ-QW-03
Product name:
feather selecting and separated machine
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Size: 123 x 116 x 121 CM
Gross weight: 535 KG
Net weight: 460 KG
Port
SHANTOU
Lead Time :
7 - 30days

Product Description

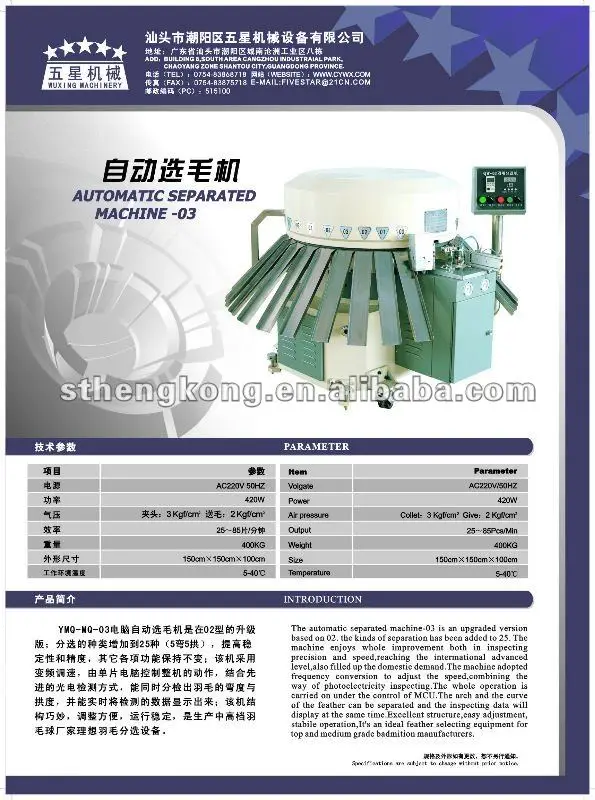

Feather selecting and separated shuttlecock production machine



.jpg



Equipment of  Badminton
Product Name : Auto separated machine -03
Item # : 232032-875
Model : YMQ-MQ-03

The automatic separated machine 03 is an upgraded version based on 02. the kinds of separation has been added to 25. The machine enjoys whole improvement both in inspecting precision and speed,reaching the intermational advanced level,also filled up the domestic demand.The machine adopted frequency conversion to adjust the speed,combining the way of photoelectricity inspecting.The whole operation is carried on under the control of MCU.The arch and the curve of the feather can be separated and the inspecting data will display at the same time.Excellent structure,easy adjustment,stabile operation,It's an ideal feather selecting equipment for top and medium grade badmition manufacturers.

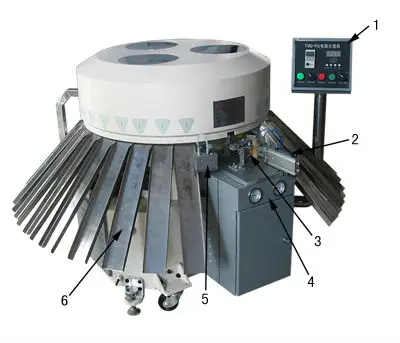

1. Console

2.Cylinder of feeding feather

3.Clip base

4.Pressure gauge

5.Detecting Head

6.Material trough

Dimension and function of the unit subject to change without notice!





PARAMETER



Item

Parameter

Volgate
AC220/50HZ
Power
430W
Air pressure
Collet 3 Kgf/cm2
Give 2 Kgf/cm2
kind
25
Output
25 85 Pcs/Min
Temperature
5-40
Weight
400Kg
Size

130cm×130cm×100cm
